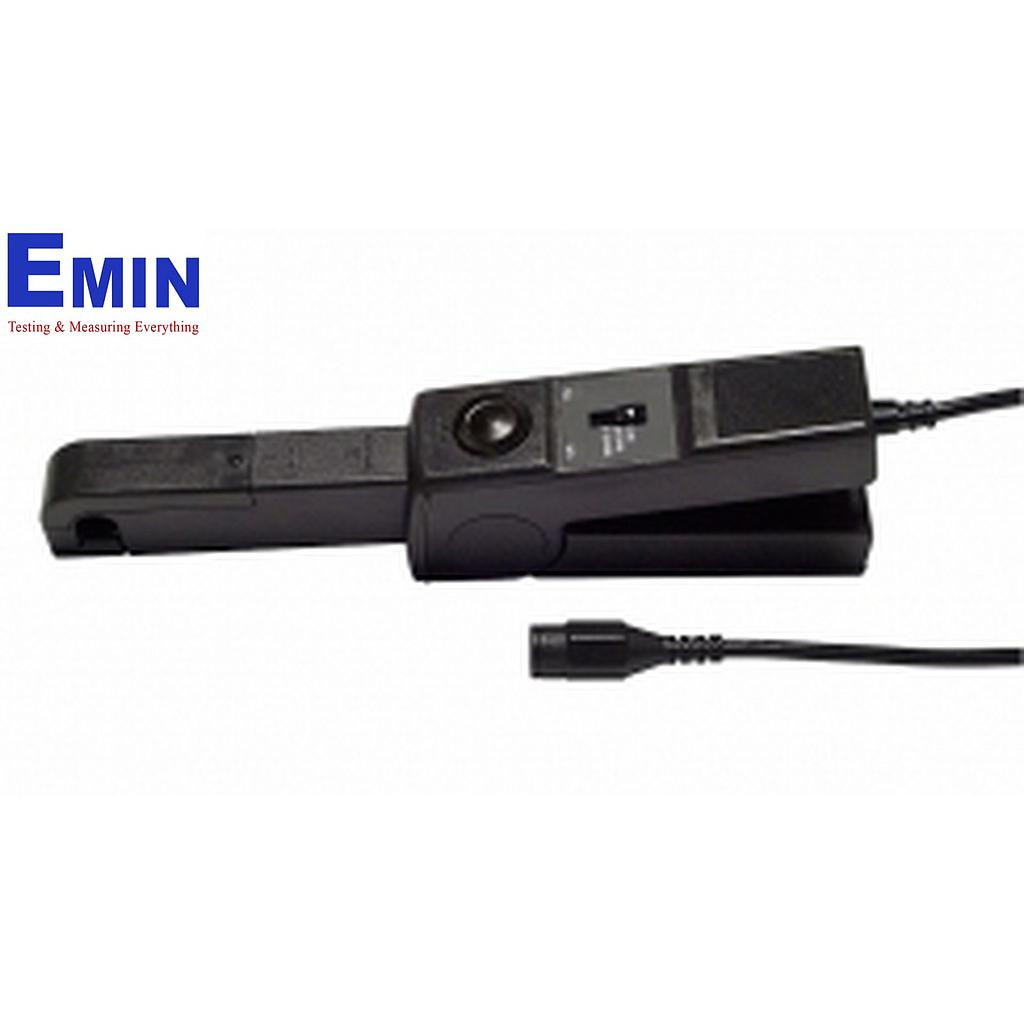

Chauvin Arnoux PAC12 オシロスコープ AC鎹 (600A)
生産者: Chauvin Arnoux Model: PAC12 P/N: P01120072 起源: France 品物を保証します: 12 Month - 連絡先
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24）62923267
Manuafacturer: Chauvin Arnoux
Model : PAC 12
Item: P01120072
Warranty : 12 month
- Input
+ Range: 0.2 A - 60 A đỉnh; 0.4 A - 60 A DC; 0.5 A - 600 A peak ; 0.5 A - 600 A DC
+ AC: yes
+ DC : yes
- Output / Connections
+ Current:
+ Voltage: 600 mV peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 1 A / 10 mV; 1 A / 1 mV
+ Automatic DC zero: yes
+ Bandwidth (frequency in Hz): DC - 10kHz
+ Typical accuracy: ≤ 1.5%; ≤ 2%
datasheet
user guider
catalog vietnamese
catalog english
Description
The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents.
2 forms are proposed to clamp cables up to 30 mm or 42 mm in diameter, as well as small busbars.
The range comprises PAC1x models and PAC2x models for higher currents.
When used with an oscilloscope, this isolated current sensor has 2 sensitivities and allows you to view currents with a bandwidth of up to 10 kHz and peak current up to 600 A DC or peak.
It is equipped with a a simplified ZeroDC adjustment system and a deactivatable automatic standby function.
Main features of the PAC12 clamp:
- Rated current: 400 A AC/600 A DC
- Output signal: DC and AC voltage
- Output / input ratio: 10 mV / A, 1 mV / A
- Output via coaxial cable and isolated BNC male plug
